Flat-Top Antenna

WIREMAN'S FLAT-TOP ANTENNA KIT, CONTAINS 135 FT. OF PN511 ANTENNA WIRE, 100 FT. OF PN 815 ROPE, 75 FT. OF PN 553 "WINDOW" LADDER LINE, 1 CENTER INSULATOR, 2 PN 813 END INSULATORS, INSTRUCTIONS. THIS IS THE BEST HF ANTENNA BUY ON THE MARKET. WITH A DECENT TUNER, WORK ALL BANDS WITH 1:1 SWR AT ANY POWER LEVEL. EASY TO ASSEMBLE AND WILL WORK IN A VARIETY OF CONFIGURATIONS. CAN BE DOCTORED TO FIT IN LESS THAN 100 FEET IF NECESSARY. A PERFECT NEW HAM CHOICE - HUNDREDS IN USE. CALL FOR HELP IF NEEDED.

Rotor Cable 18-22 ga

CQ-R1; 2-18awg & 6-22awg conductor rotor cable. Delux rotor cable used for runs up to 140'. This is a very tough durable rotor cable with 8 conductors of tinned stranded color coded wires. A premium rotor cable for Ham IV, T2X rotors. Call for quantities in excess of 100'

Rotor Cable Medium-Heavy

CQ R2, 2-16awg & 6-18awg 8 conductor delux rotor cable. This is PREMIUM ROTOR CABLE USED FOR RUNS UP TO 235'. Recommended for Ham IV, and T2X rotors. A tough durable rotor cable that lasts and lasts. This product sells for $0.82 per foot, a truly great rotor cable for the price. Call for prices on quantities of 100' or more.

Rotor Cable Heavy Duty

CQ-R4, 2-14awg & 6-18awg 8 conductor rotor cable. Heavy duty rotor cable good for runs up to 325' A premium rotor cable for Ham IV and T2X rotors. This is a must for runs in excess of 250'. Call for prices of 100' or more.

Premium Rotor Cable 2-12

This is the heaviest and most durable rotor cable made. 2-12awg conductors for power, 6-16awg for the control wires. 300 volt rating, 1500 v RMS, and now a new tough, black special UV and critter resistant, direct buriable, polyethylene jacket, shaped and cushioned for maximum protection. Manufacturer recommended max. length is 425 feet. A premium rotor cable for Ham 1V and T2X. Call for lengths of 100' or more.

Rotor Cable 5-20awg

5-20awg rotor cable for various light weight rotors, resistance 1.04 ohms per 100' wire. Call for lengths 100' or more.

Rotor Cable 6-18

6-18 gauge six conductor rotor cable. Covers most Yaesu and other rotors. Call for lengths of 100' or more.

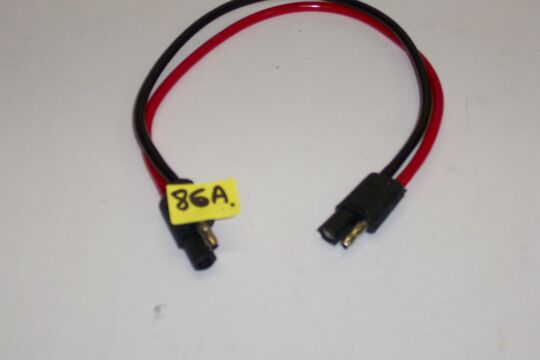

Quick Disconnect - 10

QD-10, Quick Disconnect Power Cord Assembly, 10 AWG one foot in length; bonded and moulded RED/BLK - MALE - FEMALE ENDS FOR EASY connection and splicing. Used exclusively where easy connection and disconnection is required.

Quick Disconnect - 8

QD-8-Quick Disconnect Power Cord Assembly, 8 AWG one foot in length; bonded and moulded RED/BLK - MALE - FEMALE ENDS FOR EASY connection and splicing. Used exclusively where easy connection and disconnection is required.

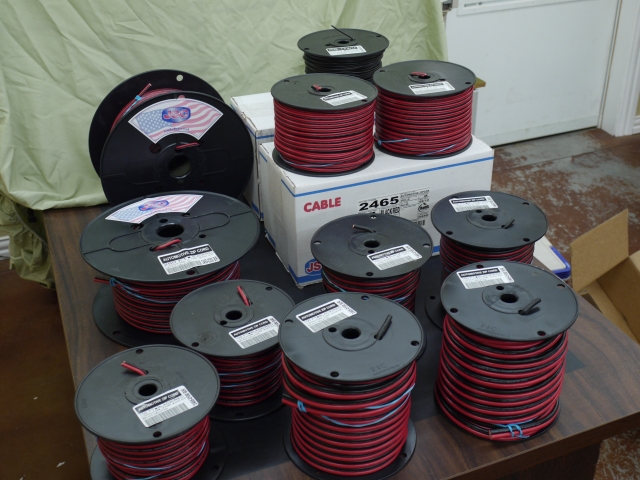

Zip Power Cable 8awg

8 awg Bonded Red & Black zip power cord. Heavy duty power cable rated at 40 amps. Made in USA......finest quality bonded power cable available anywhere.

Zip Power Cable 10awg

10 awg Bonded Red & Black Zip Power cable. Rated at 25 amps. Finest 10awg zip cable available anywhere in USA. Made in USA.....a great product.

Zip Power Cable 12awg

12 awg Bonded Red & Black zip power cable. Rated at 15 amps. Made in USA...a truly quality power hook up wire.

Zip Power Cable 14awg

14 awg Zip Power cable, Bonded Red & Black. Made in USA. Quality product. Call on quantities in excess of 100'

Zip Power Cable 16awg

16 awg Zip Power cable, Bonded Red & Black. Made in USA. Quality product. Call on quantities in excess of 100'

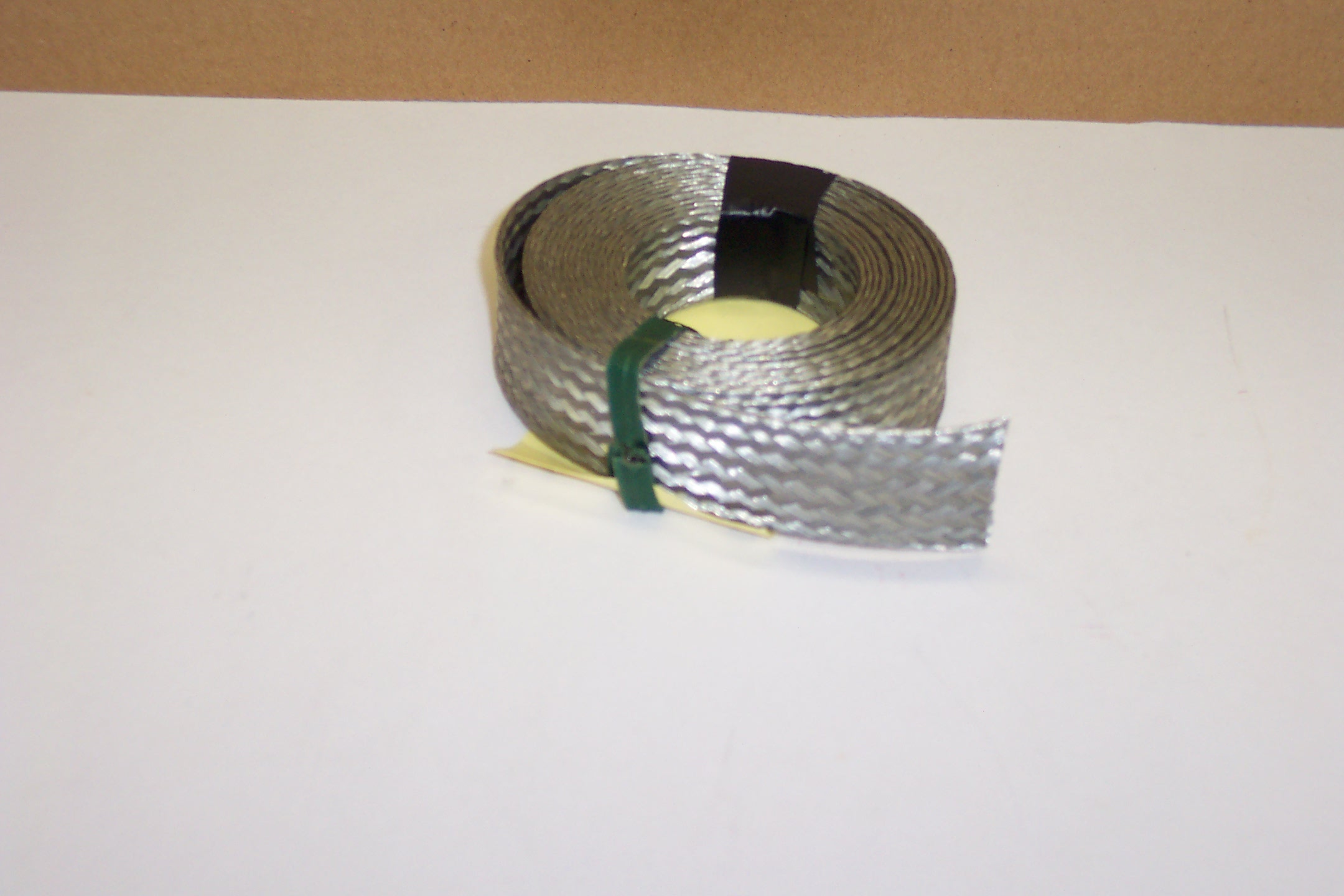

1/2" Tinned Copper Braid

1/2" TINNED COOPER BRAID USED FOR MANY PURPOSES, GROUND STRAP, POWER DISTRIBUTION GROUNDING STRAP, ETC. EASY SOLDER, TIGHT WEAVE FOR DURABLE PREFORMENCE. Sells for $1.10 per foot.

1" Tinned Copper Braid

1" TINNED COPPER BRAID USED FOR GROUNDING APPLICATIONS WHERE STRENGTH AND DURABILITY ARE CRITICAL. GREAT FOR TOWER AS WELL AS STATION GROUNDING APPLICATIONS. EASY SOLDERABLE MATERIAL AS COPPER IS WOVEN TIGHTLY AND TINNED. Call for prices on quantities in excess of 100'.

Connector Coax-Seal

HIGHLY EFFECIENT OUTSIDE CONNECTOR SEALANT. A PACK WILL NORMALLY SEAL APPROXIMATELY SIX CONNECTORS. THIS MATERIAL IS USED FOR SEALING EXTERNAL CONNECTORS WHERE MOISTURE IS EVER-PRESENT AND CAN WICK/SEEP INTO THE COAX BRAID OVER A PERIOD OF TIME. A MUST FOR ALL EXTERNAL CONNECTORS.

G5RV Kit

8CQ-G5RV KIT. THE ZS6BKW VERSION OF THIS VERY POPULAR ANTENNA. IT REQUIRES LESS THA 100 FEET OF SPACE, AND WILL WORK SOME OF 7 BANDS WITH TUNER IN LINE WITH NO TRAPS OR GIMMICKS. THIS ANTENNA IS DESIGNED FOR LIMITED SPACE OPERATION, AND REQUIRES CAREFUL ASSEMBLY. CPMPLETE INSTRUCTIONS AND REFERENCES ARE INCLUDED, WITH 110 FT. OF PN 511 ANTENNA WIRE, 40 FEET OF PN 553 LADDER LINE, 100 FT. OF PN 815 ROPE, TWO PN 813 END INSULATORS AND ONE CENTER INSULATOR.

3/4" Pulley

PULLEY, 3/4" MARINE GRADE, SWIVEL, 60 LB. WORKING LOAD, FOR 3/32", 3/16" ROPE.

1" Pulley

PULLEY- 1 INCH, MARINE GRADE, SWIVEL, 90 LB WORKING LOAD, FOR 3/16" TO 5/16" ROPE.

Grounding Buss - 4 - Port

WIREMAN'S CQ-GD-4 GROUNDING BUSS - FOUR GROUNDED SO239'S IN HEAVY ALUMINUM ANGLE. SAME AS PN 857, BUT WITH 4 PORTS. THIS BUSS PROVIDES A SIMPLE AND POSITIVE DISCONNECT AND DISSIPATION SYSTEM THAT BOTH PROTECTS YOUR EQUIPMENT & LOWERS THE POSSIBILITY OF A STRIKE TO YOUR STATION. 1. QUICK DISCONNECTION OF ANTENNA FEED LINES. 2. QUICK CONNECTION OF THOSE FEED LINES TO THE GROUND BUSS ALLOWS THE ANTENNAS TO ACT AS DISSIPATORS AT YOUR QTH, ACTUALLY LOWERING THE POSSIBILITY OF A STRIKE.

Grounding Buss - 8 - Port

CQ-GD-6 GROUNDING BUSS- SIX GROUNDED SO239'S IN HEAVY ALUMINUM ANGLE WITH SOLID AWG 8 COPPER LEAD, CLAMP, TWO QUICK DISCONNECTS, INSTRUCTIONS.

Rotor Cable Suppressor - 348

I.C.E. ( Morgan Manufacturing Inc. ) ROTOR AND /OR REMOTE SWITCH TRANSIENT SUPPRESSOR. MODEL 348 LIKE NO OTHER PROTECTION DEVICE IN THE WORLD FOR ROTOR CABLE SUPRESSION, THIS MODEL SUPPLIES A NEAR PERFECT BLOCKING/SHUNTING FOR INDUCED VOLTAGES FROM DIRECT OR INDIRECT LIGHTNING, WIND, RAIN OR SNOW. THIS SUPRESSOR IS CONSTANTLY ACTIVE, DRAINING THE CABLE CONDUCTORS TO GROUND, PROVIDING SOLID PROTECTION. MODEL 348 IS FOR USE WITH 120V OR LESS SYSTEMS, AC OR DC !

8 KW Lighting Suppressor

I.C.E. (Morgan Mfg) LIGHTNING SUPPRESSION DEVICES. 300 SERIES COAXIAL IMPULSE SUPPRESSORS WITH UHF, N, BNC PORTS. LIKE NO OTHER PROTECTION DEVICE IN THE WORLD FOR RF COAXIAL CABLE LINES, THIS 303U (UHF PORT)SERIES SUPPLIES A NEAR PERFECT BLOCKING/SHUNTING SYSTEM FOR INDUCED VOLTAGES FROM DIRECT OR INDIRECT LIGHTNING, WIND, RAIN OR SNOW. THEY ARE CONTINUOUSLY ACTIVE, CONSTANTLY DRAINING THE COAX CENTER CONDUCTOR TO GROUND, PROVIDING SOLID PROTECTION AND NOISE REDUCTION FOR THE STATION. *CAPACITATIVE BLOCKING-NO DC CONTINUITY IN/OUT!

Coax Suppressor 301/U

I.C.E. LIGHTNING SUPPRESSOR, SAME FINE PRODUCT AS PN895 (MODEL 303/U/N), BUT RATED AT 1KWPEP/500 WATTS FROM 1.5-50 MHZ. COMES IN BNC, UHF, AS WELL AS N CONNECTOR PORTS. SEE DESCRIPTION OF ELECTRICAL AND GROUNDING CAPACITY IN PN 895. A GREAT PRODUCT AND MUST FOR ANY HAM STATION WHERE LIGHTNING IS A SERIOUS THREAT.

Coax Suppressor 302/U

I.C.E COAXIAL LIGHTNING SUPPRESSOR. SAME FINE PRODUCT AS PN 896 (MODEL 301/U) EXCEPT IS RATED FOR FREQUENCY RANGE OF 50-500 MHZ. THIS MODEL 302 IS AVAILABLE IN UHF(SO239), BNC, AND "N" CONNECTOR PORTS. SEE ELECTRICAL GROUNDING DESCRIPTION IN PN 895 FOR COMPLETE DETAILS OF THIS FINE PRODUCT

HF Lighting Arrestor

Morgan Mfg Inc. HF arrestor 1.5 through 40 Mhz; 8 KW Pep/50 ohms. The essential lightning protection for your station in USA.

Lighting Arrestor

CQ- BRASS ADAPTOR FOR MOUNTING PN 878 ON STANDARD 5/8" GROUND ROD.

Lighting Arrestor L-L

WIREMAN'S CQ-COMBO PACK, WITH ONE EACH OF PN 878 AND PN 879 FOR TWIN LEAD LIGHTNING PROTECTION. ALSO CONSIDER PN 845 KNIFE SWITCH. This great device is ready for use with 5/8" ground rod (PN852) INSTRUCTIONS FOR GAP ADJUTMENT INCLUDED.

Static Charge Dissipator

CQ-PORCUPINE STATIC CHARGE DISSIPATOR PROVIDES AN IONIZED DISCHARGE PATH AT STRESS POINTS ON COMMUNICATIONS TOWERS OR ANTENNA STRUCTURES. STAINLESS STEEL "QUILLS" HEAVY CAST COPPER ALLOY TERMINALS. MINIMIZE THE RISK OF A LIGHTNING STRIKE AT YOUR QTH. IF YOU LIVE IN FLORIDA, TEXAS, OKLAHOMA, KANSAS, ARKANSAS, MISSISSIPPI, LOUISIANA, MISSOURI, YOU'LL NEED THEM!

Rotor/Switch Suppressor

6 awg Solid Bare Copper Wire

6 gauge solid bare copper grounding wire for towers, staions, buss terminals and similar applications where continous shunting of transient voltages to ground is paramount.

20 Amp Power Supply

Powers 12V DC Devices. 18 Amp Constant/20 Amp Surge - Heavy Duty Cabinet-Heatsink-Built in Cooling Fan-Short Circuit Thermal Protection-Crowbar Over Voltage Protection-Electronic Overload Protection with Auto Reset - Fuse Protected - LED Condition Indicators. Anti-Skid Rubber Feet. Screw Terminal Connectors.

Pyramid 25 Amp Power Supply

25 Amp Power Supply. Heavy Duty cabinet and Heat Sink. Built in Cooling fan. Short Circuit and Thermal Protection. Crowbar Over Voltage protection. Fuse Protected. Electronic Overload Protection w/Auto Reset. LED Condition Indicators. Anti Skid Rubber Feet. Screw Terminal Connectors. PERFECT FOR HOME, SHOP AND THE HOBBIST; HAM RADIOS, CB RADIOS, SCANNERS, AUTOSOUND SYSTEMS

Coax Crimping Tool 8X

Ratchet Crimping tool for RG-8X, RG-58, RG-174 coax and fiber optic cable. Easy to use for coax, connectors, inter locking connectors, cord end terminals and insulated terminals. Pressure adjustable dies are inter changeable.
