Pre Assembled Coaxial Cable
Wireman's CQ Coaxial Cable pre cut with end connectors attached. RG-8X, RG-213/U, and Wireman's Low Loss Super 8 is available in lengths from 3 feet to 150 feet. PL-259 connectors are standard, but BNC/M-F, "N"/M-F, or Mini UHF/M-F are also available.
$19.00 to $183.00
RG-8X Low Loss, Double Shield
Wireman's CQ Mini 8X Low-Loss Double Shielded Coax. 50 ohm impedance, mylar foil. tinned copper braid, PVC-XL jacket with a Velocity Factor of .80... This is a tough durable mini 8 coax used for HF as well as VHF & UHF applications. Many mobile applications of this product are in use today as this great coax has become the choice of mini 8 users in the amateur community. Maximum power rated @ 700watts
$0.95 per ft
RG-8X Mini 8 Coax
This is a regular mini 8 coax with a single braided shield. Used exclusively for mobile applications.Is rated at 200W power. This 50 ohm inpedance coax has a velocity factor of .78 with a PVC-class 2A jacket. A standard bearer of the amateur community. Call for price quotes in excess of 500' or more.
$0.49 per ft
Bury Flex Super 8 Low Loss
Wireman's Super 8 double shielded low-loss direct buriable coax...."Bury-Flex" 4XL by Davis RF Co. Same as Wireman's 106, but is designed for direct burial. Attentuation is same as #106........2.8 DB @ 450 Mhz. Has a 20 + year life expectancy. Call for prices on 500' and above. The best Super 8 Low-Loss bury flex you can buy. Made in the USA.
$1.16 per ft

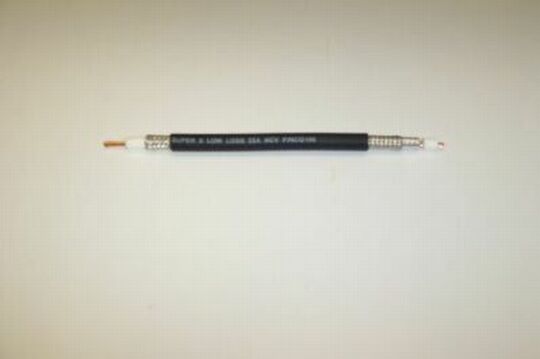

Super 8 XL Low Loss
Wireman's Super 8 double shielded coax exclusively designed for VHF, UHF and above applications. Completely rotatable and also used in conjunction with HF applications. 100% shielded with a stranded center conductor. This is the LMR 400 Ultra-Flex type coax that does it all....the good stuff! Use regular UHF PL-259 connectors. Call on amount in excess of 499feet. Rated at 1500 watts.
$1.75 per ft

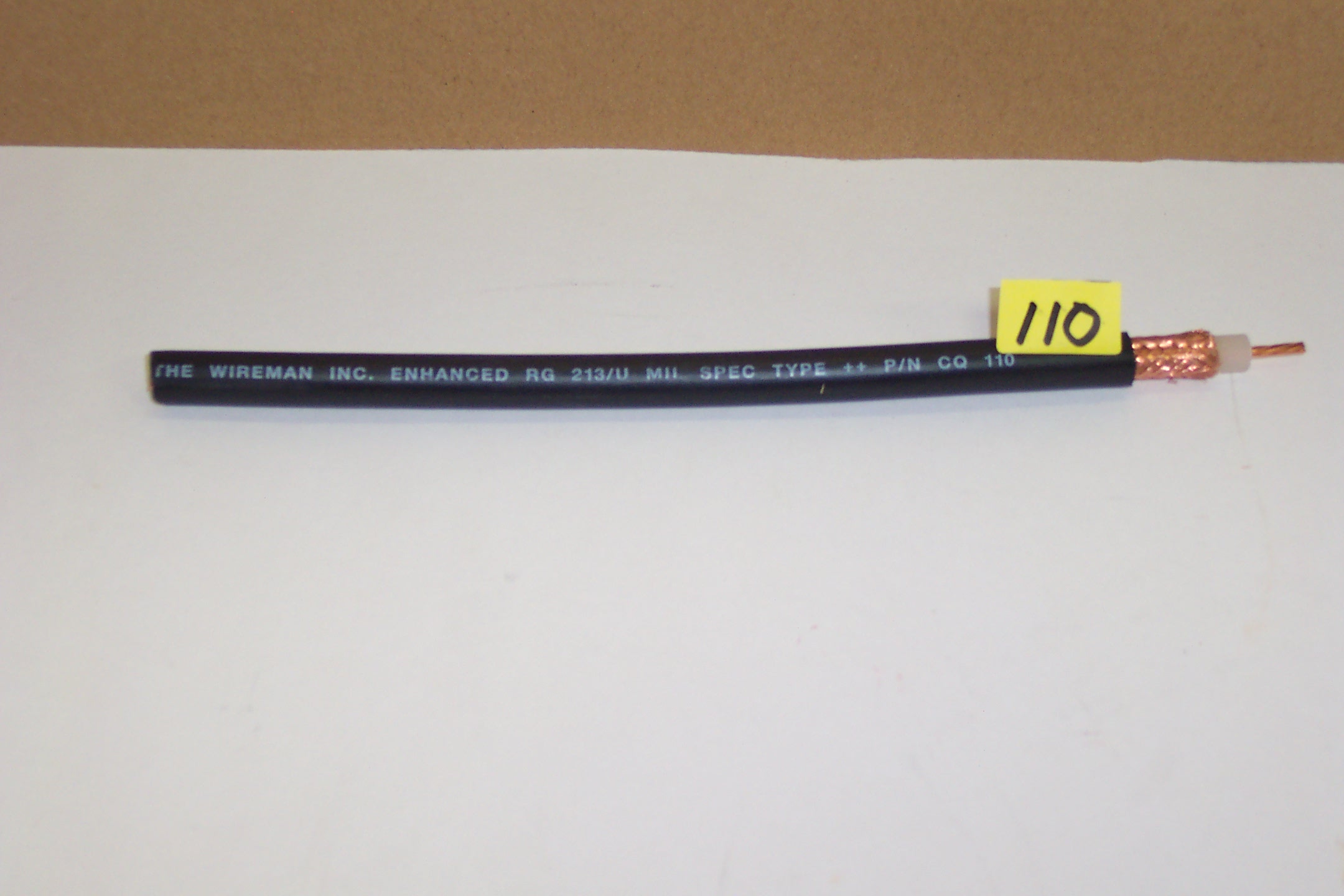

Enhanced Mil-Spec RG-213
Wireman's CQ enhanced Mil Spec RG-213/U. This material has the same CQ qualities as our PN113, but additionally has a higher temperature stability/rating in the jacket for extreme weather conditions where high heat and colder weather elements prevail. This is a truly tough and durable RG-213/U. The best you can buy! Made in USA
$1.75 per ft

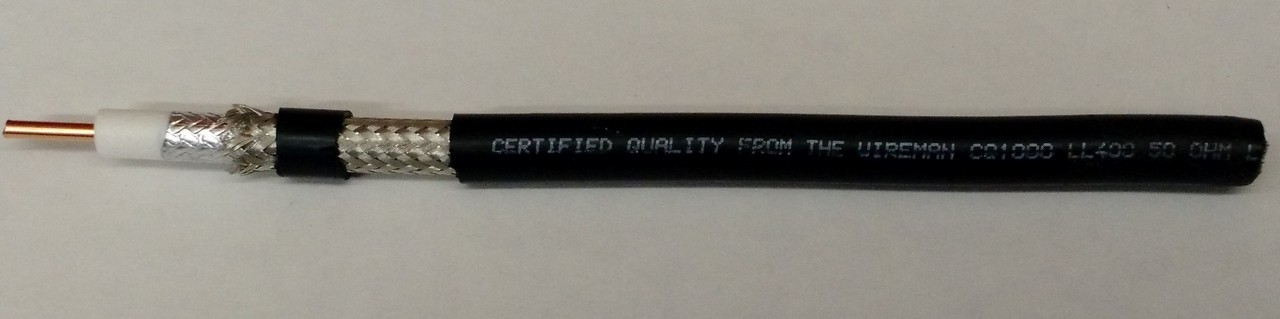

CQ-1000 Orginal
Wireman's CQ-1000 original Super 8 size coax. Not rotatable, but extremely low loss. LMR 400 equilivent. Solid center conductor and 100% shielded makes this product our lowest loss coax for VHF, UHF and above applications. 1.7 DB loss @ 200 MHZ! If you want the lowest loss coax for VHF and above applications where you don't need rotatable activities...this is the one! Uses regular PL-259 or "9913" screw-solder on "N" type connectors. This coax has the CQ tradition of Wireman fine products for over 28 years. Call for quantities in excess of 499' or more. Rated at 1500 watts.
$0.96 per ft
RG-58/U Mil Spec
Rg-58/U coax is a Mil Spec product of 52.5 ohm impedance and has a solid center conductor with a polyethylene dielectric for those who prefer the lowest loss possible in this size material. Call for quantities in excess of 499' or more.
$0.44 per ft
RG-58C/U
Mil Spec Rg-58 coax, 50 ohm impedance with a stranded center conductor and polyethylene dielectric. Has a PVC class 2A jacket. Call for quantities in excess of 500' or more.
$0.44 per ft
Double Shield Low Loss RG-58
This is the lowest loss double shielded RG-58 Wireman coax available. A Superior coax material for the discriminating Amateur radio operator. Has a class 2A jacket and UV rated in excess of 20+ years. A durable long lasting RG-58 coax; power rating in EXCESS of 300 watts.
$0.60 per ft
